Description

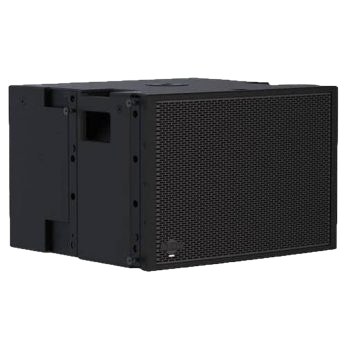

EAW RSX12 12 INCH SELF-POWERED SUBWOOFER – DANTE

The RSX12 12” subwoofer is flyable and ultra-compact, ideal for installs or other applications with minimal floor space for subwoofers. The RSX12 features onboard electronics (1000W per channel) and ultra-wide ports that drastically reduce low-frequency turbulence.

Features

• Compact, flyable design ideal for installs with floor space constraints or specific aesthetic demands.
• Extremely approachable EAWmosaic™ iOS app delivers system prediction, control and monitoring from any location in the venue.
• Proven EAW acoustical design and DSP including Focusing™ and DynO™ provides a pristine impulse response at all output levels.
• Integrated Dante™ networking (with loop-thru) on all models including Analog redundancy capability.

Applications

• House of Worship
• Theatres, Auditoria and Performing Arts Centers
• Live Music Clubs
• Corporate AV Houses
• Live Production/Regional Rental Houses
• Dry Hire

Description

Designed to streamline setup and deliver maximum results in minimum time, RADIUS couples unique and intelligent features with EAW’s signature acoustical design to deliver solutions for rental firms and system integrators. The RSX12 12” subwoofer is flyable and ultra-compact, ideal for installs or other applications with minimal floor space for subwoofers. The RSX12 features onboard electronics (1000W per channel) and ultra-wide ports that drastically reduce low-frequency turbulence. EAWmosaic™ app provides total system optimization from anywhere in the venue, plus intuitive room design and prediction in a single, comprehensive application. With the proven sonic performance of EAW’s acoustic design and DSP mastery plus full Dante integration across theline, RADIUS delivers an intelligent and flexible system to fit any budget.

Configuration

Transducer Loading LF 1 x 12 in cone, 3 in voice coil Vented

Operating Mode

Amplifier Channels Signal Processing

Single-amp LF DSP w/ Dyn0™

Performance

Operating Range 40 Hz to 140 Hz

Nominal Beamwidth Horizontal 360° Vertical 360°

Calculated Axial Output Limit

Average Peak

(whole space) 122 dB 128 dB

(half space) 128 dB 134 dB

Electrical Performance

Input

Type Electronically balanced

Max Input Level 21dBu

Impedance 20 kOhm (balanced)

Wiring XLRF, Pin 1 chassis, pin 2 +, pin 3 –

Separate loop-thru XLRM (for analog signal only)

Input Selection

Analog, Dante

Amplifiers & Processing

LF

Type Modified Class D

Maximum Output 1000W

Driver Protection Integral DSP limiting

AC Mains (nominal)

Connector Neutrik PowerCon®

Input 100 V to 240 V

Frequency 50 Hz to 60 Hz

Power Consumption Idle 22 W

Peak Draw 275 W

Controls/Communication

Connections 2x Neutrik® etherCON™, RJ-45

Protocols Ethernet/Dante

Software EAWmosaic™ (available on the App Store)

Indicators LCD Screen on amplifier panel for UI,

Logo LED (User-definable behavior)

User Controls Push-button Rotary Encoder

Weight 76.0 lbs/34.5 kg

Dimensions 17x25x23 in / 437x640x595 mm
